5787082-7
Manufacturer:
TE Connectivity
Mfr.Part #:
5787082-7
Datasheet:
Description:

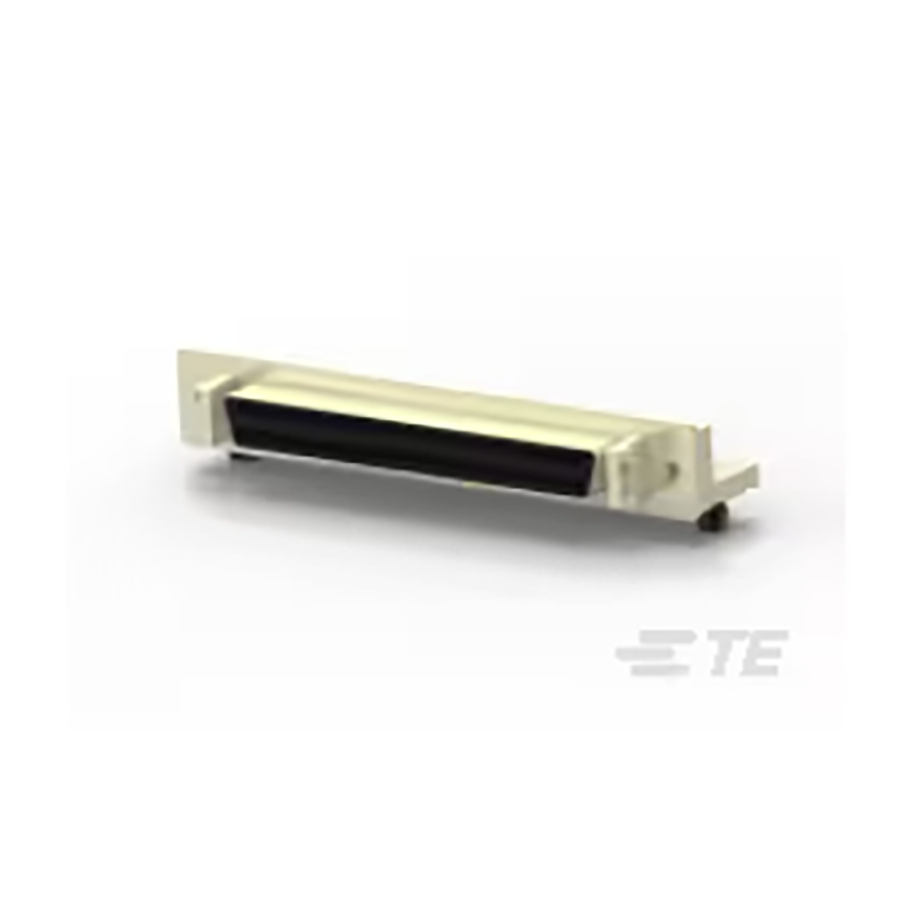

D-Sub Connectors Through Hole Receptacle, Female Sockets Number of Positions:68 Solder Female
| Parameter | Value |
|---|---|
| Length | 63.88 mm |
| Width | 10.31 mm |
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -55 °C |
| Number of Pins | 68 |
| Height | 10.31 mm |
| Material | Metal |
| Packaging | Tube |
| Voltage Rating | 30 V |
| Depth | 16.87 mm |
| Lead Free | Lead Free |
| Radiation Hardening | No |
| RoHS | Compliant |
| REACH SVHC | No SVHC |
| Contact Plating | Gold |
| Features | Shielded |
| Lead Length | 2.54 mm |
| Pitch | 1.27 mm |
| Type | Receptacle, Female Sockets |
| Number of Terminals | 68 |
| Current Rating | 1 A |
| Flammability Rating | UL94 V-0 |
| Approvals | CSA, UL |
| Orientation | Right Angle |
| Lifecycle Status | Production (Last Updated: 4 days ago) |
| Color | Black |
| Gender | Female |
| Shielding | Shielded |
| Number of Contacts | 68 |
| ELV | Compliant |
| Body Material | Steel |
| Hole Diameter | 2.77 mm |
| Connector Type | Connector, Receptacle |
| Contact Type | Signal |
| Number of Positions | 68 |
| Number of Rows | 4 |
| Row Spacing | 2.54 mm |
| Housing Material | Thermoplastic |
| Number of Ports | 1 |
| Circuit Application | Signal |
| Max Voltage Rating (AC) | 30 V |
| Max Supply Voltage (AC) | 30 V |
| Housing Color | Black |
| Plating | Copper, Nickel |
| Body Plating | Tin |
| PCB Mounting Orientation | Right Angle |
| PCB Thickness | 1.57 mm |
| Shell Material | Steel |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 4 days ago) |
| Sealable | No |
| Mating Connector Lock | With |
| PCB Mount Retention | With |
